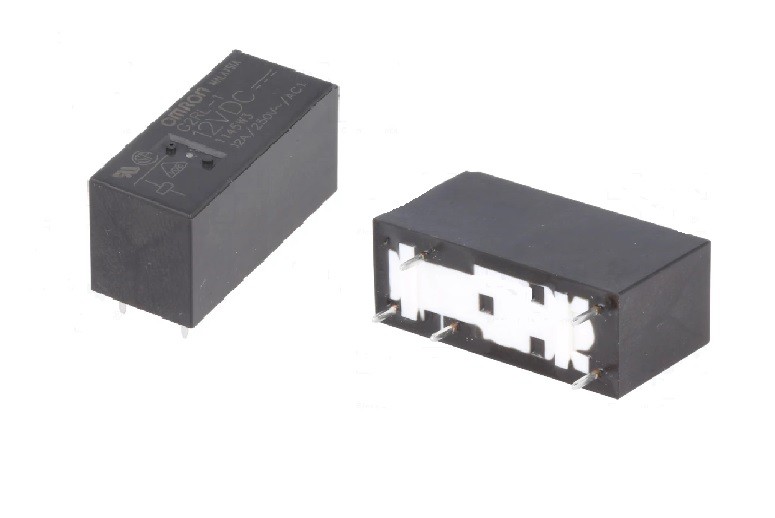

REL-G2R-1-12VDC, RELAY 12V 10A 275R SPDT, RELAY, 12VAC 1KONT.(SPDT)

Manufacturer OMRON
Type of relay electromagnetic
Contacts configuration  SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R
(at resistance load) 10A / 250VAC
DC contacts rating @R
(at resistance load) 10A / 30VDC
Contact current max. 10A
Switched voltage max 380V AC, max 125V DC
Relay variant miniature
Mounting PCB
Coil voltage min. 9.6V DC
Operate time 15ms
Body dimensions 29 x 13 x 25.5mm
Release time 5ms
Mechanical durability 20000000cycles
Operating temperature -40...70°C
Relay series G2R
Contact resistance 30mΩ
Terminal pitch 3.5mm
Coil current 43.6mA
Enclosure description standard seal
Dimensions pogledaj
Output configuration pogledaj

Dodatne informacije

Težina bruto: 0.02 kg

Šifra: 119786

Količina: 0

Kataloški brojevi: G2R1-12A,G2R-1 12VDC,

Zamjena: REL-LMR1-12D-RAYEX EL., REL-G2RL-1-12DC-OMRON
