BD140-ST(TO126), TR-P-80V 1.5A 12.5W(TO126), , TRANZISTORI

Transistor Polarity: PNP
Configuration: Single
Collector- Emitter Voltage VCEO Max: - 80 V
Collector- Base Voltage VCBO: - 80 V
Emitter- Base Voltage VEBO: - 5 V
Collector-Emitter Saturation Voltage: - 0.5 V, + 0.5 V
Maximum DC Collector Current: 1.5 A
Maximum Operating Temperature: + 150 C
Series: 500V Transistors
Continuous Collector Current: - 1.5 A
DC Collector/Base Gain hFE Min: 40
DC Current Gain hFE Max: 250
Height: 10.8 mm
Length: 7.8 mm
Minimum Operating Temperature: - 65 C
Pd - Power Dissipation: 12.5 W

Šifra: 1199

Količina: 111

Kataloški brojevi:

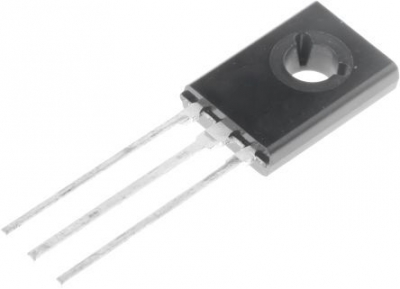

Zamjena: BD180-FSC/ON/ST(TO126)
