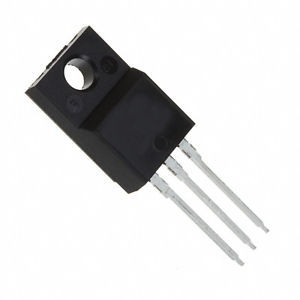

FQPF12N60CT-FSC(TO220F), TR-N-FET 600V 12A 51W 0,65R, TRANZISTORI, N-FET

Product Category: MOSFET
Manufacturer: Fairchild Semiconductor
Technology: Si
Mounting Style: Through Hole
Package/Case: TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 600 V
Id - Continuous Drain Current: 5.8 A
Rds On - Drain-Source Resistance: 700 mOhms
Vgs - Gate-Source Voltage: 30 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Packaging: Tube
Channel Mode: Enhancement
Brand: Fairchild Semiconductor
Configuration: Single
Fall Time: 85 ns
Forward Transconductance - Min: 6 S
Height: 16.3 mm
Length: 10.67 mm
Pd - Power Dissipation: 55 W
Rise Time: 115 ns
Factory Pack Quantity: 50
Transistor Type: 1 N-Channel
Type: MOSFET
Typical Turn-Off Delay Time: 95 ns
Typical Turn-On Delay Time: 30 ns
Width: 4.7 mm

Šifra: 117662

Količina: 0

Kataloški brojevi:

Zamjena: AOTF12N60-A&O(TO220F)
