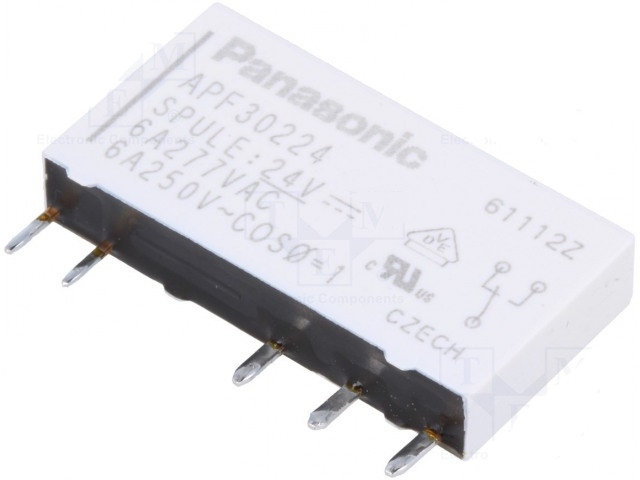

REL-APF30224-PANASONIC, RELAY SPDT 24VDC 6A/250VAC, RELAY, 24VDC 1KONT.(SPDT)

Manufacturer PANASONIC
Type of relay electromagnetic
Contacts configuration  SPDT
Rated coil voltage 24V DC
AC contacts rating @R
(at resistive load) 6A / 250V AC
Contact current max. 6A
Switched voltage max. 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 147Ω
Coil voltage min. 16.8V DC
Body dimensions 28x5x15mm
Coil power consumption 170mW
Mechanical durability 5000000cycles
Operating temperature -40...85°C
Relay series APF
Contact material AgNi
Coil current 7.1mA

Šifra: 122136

Količina: 9

Kataloški brojevi: APF30224

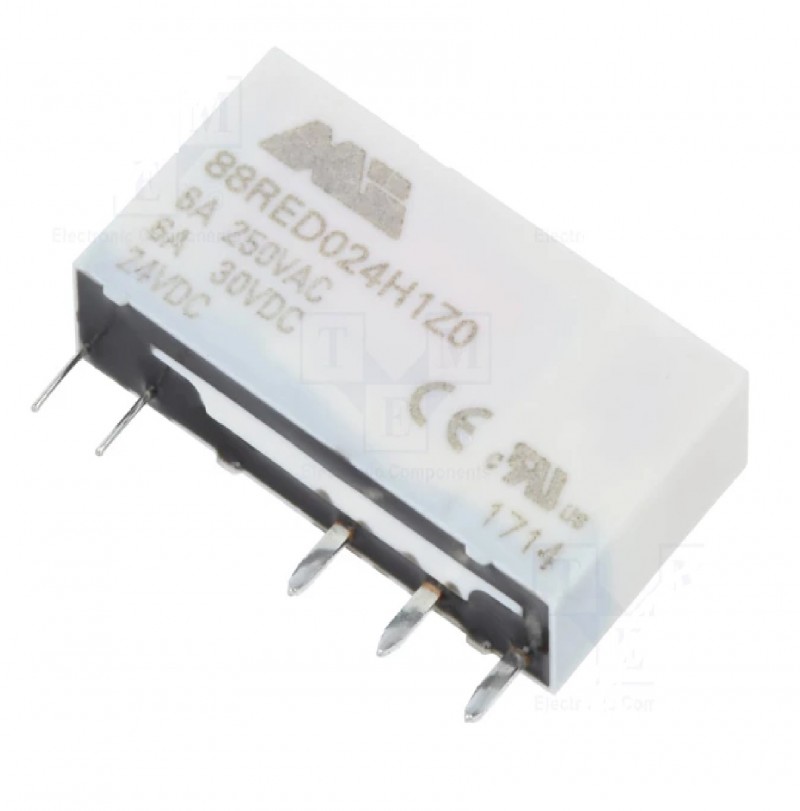

Zamjena: REL-V23092A1024A801, REL-RSS113024-WEIDMULLER, REL-RM699V-P-24, REL-88RED024H1Z0-MORSET, REL-RM699V-P-24, REL-RM699V-P-24
