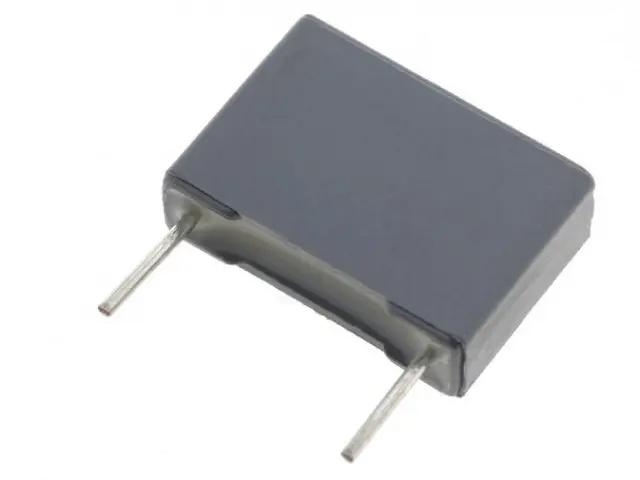

C47K 1000V-KEMET
KOND polyester; 47nF; 250VAC; 1000VDC; R
Šifra:123042
VPC Cijena: 1,12 €
MPC Cijena: 1,40 €
C47K 1000V-KEMET, KOND polyester; 47nF; 250VAC; 1000VDC; R, , KONDENZATORI
Manufacturer: KEMET
Type of capacitor: polyester
Capacitance: 47nF
Terminal pitch: 15mm
Tolerance: ±10%
Body dimensions: 18x13x12mm
Climate class: 55/105/56 IEC 60068-1
Operating temperature: -55...105°C
Pulse resistance: 30V/μs
Mounting: THT
Series: R60
Conform to the norm: AEC-Q200
Capacitance - µF: 0.047µF
Alias: 60QI247050L0K
Lead length: 25mm
Max. operating voltage: 250V AC, 1000V DC
