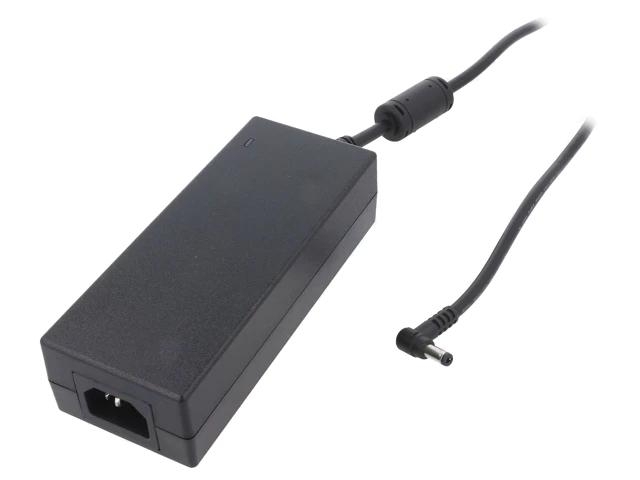

P.SUP.EU3000, , PRETVARAČ, AC-DC

Output voltages: 5.0/6.0/7.5/9.0/12/13.5/
15 VDC
Output: 36 W
Dimensions: 110 x 50 x 30 mm

These new and compact ECO-friendly power supplies meet the international standards according to CEC, MEPS, as well as the ECO-design EU directive "EuP".
The purpose of this standard is saving energy, particularly by reducing stand-by losses, as well as the reduction of carbon dioxide emissions.
Through the high energy efficiency of these switching power supplies, energy savings of up to 98% are achieved compared to conventional analogue power supplies.

Wide range input voltage: 100 - 240 V AC, 50/60 Hz
Output voltage is selected by means of a rotary switch on the underside of the power supply unit, which excludes operator errors during operation as far as possible.
Operation is displayed by an LED.

Incl. 8-piece adapter set to connect most regular devices.
Polarity reversible.

Connectors overview:
- 2.5 mm plug
- 3.5 mm plug
- 3.5 x 1.35 mm DC plug
- 5.0 x 2.1 mm DC plug
- 5.5 x 1.5 mm DC plug
- 5.5 x 2.5 mm DC plug
- 5.5 x 2.1 mm DC plug
- 4.0 x 1.7 mm DC plug



Code: 123268

Amount: 1

Catalog numbers: Y688

Replacement: P.SUP.EU600, ISPRAVLJAČ 5-15V 3A
