REL-G2R-2-24DC-OMRON, , 24VDC 2KONT.(DPDT), RELAY MINI

Manufacturer: OMRON
Relay type: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
AC contacts rating: 5 A / 250 VAC
DC contacts rating:  5 A / 30 VDC
Contact current max.: 5A
Switched voltage max: 380V AC, max 125V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.1kΩ
Operate time: 15ms
Body dimensions: 29 x 13 x 25.5mm
Release time: 5ms
Operating temperature: -40...70°C
Relay series: G2R
Contact resistance: 50mΩ
Terminal pitch: 5mm
Coil current: 21.8mA
Enclosure description: standard seal
Leads: for PCB

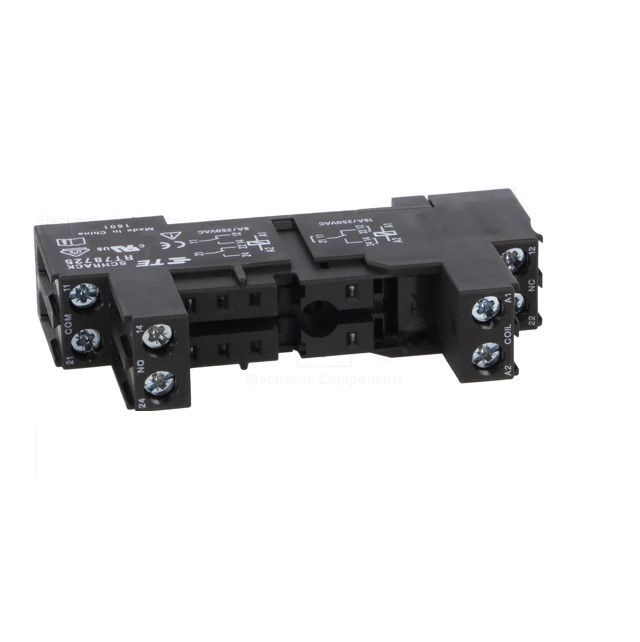

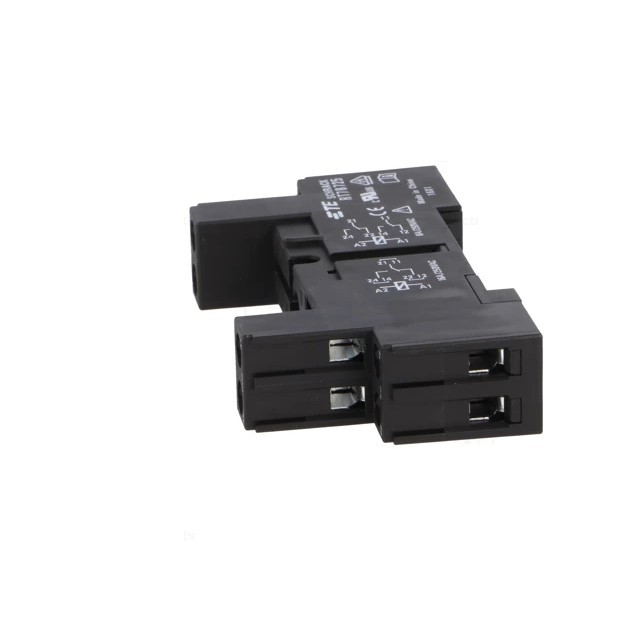

Associated items: PODST-3

Code: 117717

Amount: 4

Catalog numbers: G2R-2-24DC,

Replacement: REL-HF115F/024-2Z4A
