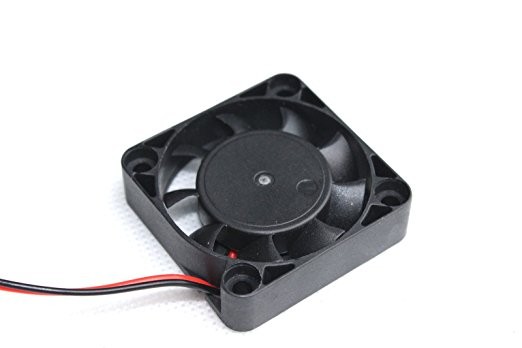

FAN40/12-MF40101VX-A99-SUNON, 12V/0,087A/1.05W/2ŽICE(40X10),LEŽAJ-VAPO, VENTILATOR 12V, 40X40X10-VAPO

Manufacturer SUNON
Fan type DC
Fan kind axial
Supply voltage 12V DC
Operating voltage 4.5...13.8V
Fan dimensions 40x40x10mm
Power consumption 1.6W
Rated current 0.13A
Fans efficiency 16.82m3/h
Noise level 36.1dBA
Bearing type Vapo
Rotational rate/speed 8500 (±15%)rpm
Weight 35g
Current and power consumption tolerance ±15%
Min. insulation resistance 10MΩ
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class A
Operating temperature -10...70°C
Leads 2 leads
Static pressure 6.09mm H2O
Cable length 300mm
Fan motor brushless DC motor
Flammability rating UL94V-0
Wire size 26AWG
Additional functions Autorestart

Šifra: 113575

Količina: 3

Kataloški brojevi: MF40101VX-A99,,

Zamjena:
