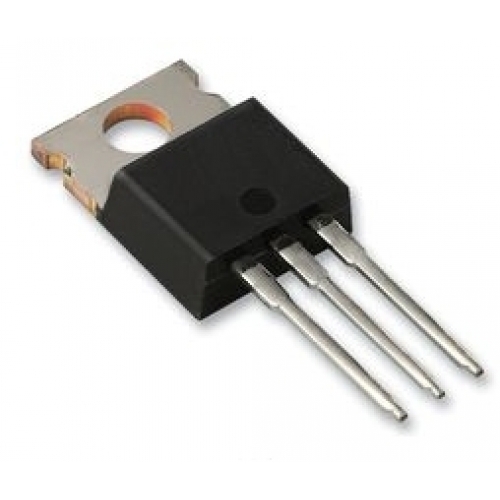

FDP2532-FSC, TR-N-FET 150V 79A 310W(TO220), TRANZISTORI, N-FET

Manufacturer: Fairchild/ON Semiconductor
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 150V
Current - Continuous Drain (Id) @ 25°C: 8A (Ta), 79A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs(th) (Max) @ Id: 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 107nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 5870pF @ 25V
Vgs (Max): ±20V
Power Dissipation (Max): 310W (Tc)
Rds On (Max) @ Id, Vgs: 16 mOhm @ 33A, 10V
Operating Temperature: -55°C ~ 175°C (TJ)

Šifra: 117411

Količina: 6

Kataloški brojevi:

Zamjena:
