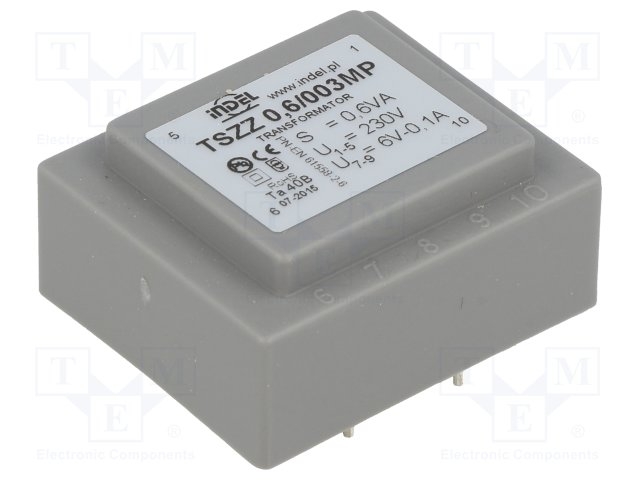

MT 1X6V 0.6W-INDEL, MREŽNI TRAFO 220V 1X6V 0.6W, TRANSFORMATORI, MREŽNI(220V)TISKANA

Manufacturer INDEL
Type of transformer encapsulated
Power 0.6VA
Primary voltage 230V AC
Secondary voltage 1 6V
Secondary winding current 1 0.1A
Mounting PCB
Electrical insulation strength 4kV/60s
IP rating IP00
Conform to the norm PN-EN 61558
Thermal class Ta40B
Secondary winding terminals 7-9
Primary winding terminals 1-5
Insulation class II
Weight 70g
A dimension 32.3mm
A1 dimension 23.6mm
B dimension 27.3mm
B1 dimension 20.2mm
C dimension 14.9mm
C1 dimension 11.7mm
M dimension 20mm
P dimension 5.05mm

Additional information

Gross weight: 40.7 g

Šifra: 115904

Količina: 4

Kataloški brojevi: 420000,6-003

Zamjena:
