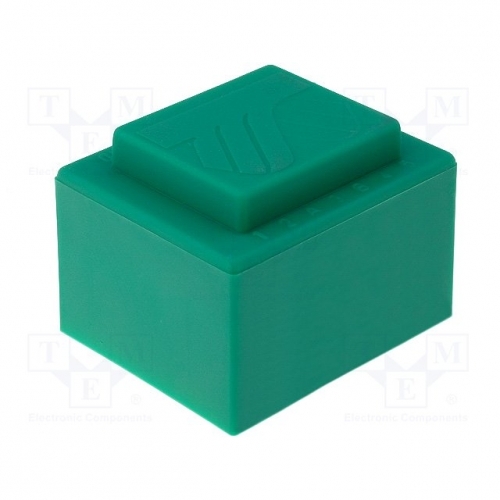

MT 1X18V 6W, MREŽNI TRAFO 220V 1X18V 6W (45X32X25), TRANSFORMATORI, MREŽNI(220V)TISKANA

Manufacturer: BREVE TUFVASSONS
Transformer type: encapsulated
Power: 6VA
Primary voltage: 230V AC
Secondary voltage 1: 18V
Secondary winding current 2: 333.3mA
Mounting: PCB
Pri./sec. insulation strength: 4kV/60s
IP rating: IP00
Conform to the norm: PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
Thermal class: Ta60B
Secondary winding terminals: 7-9
Primary winding terminals: 1-5
Weight: 200g
A dimension: 38mm
A1 dimension: 25mm
A2 dimension: 25mm
B dimension: 45mm
C dimension: 32mm

Šifra: 118161

Količina: 0

Kataloški brojevi: TEZ6/D/18V

Zamjena:
