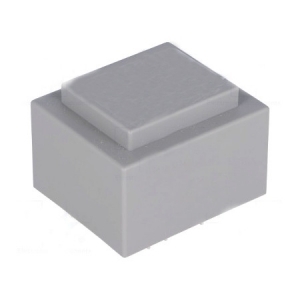

MT 1X9V 7W-INDEL, MREŽNI TRAFO 1X9V 7VA 0.78A(44X37X33), , TRANSFORMATORI

Manufacturer INDEL
Type of transformer encapsulated
Power 7VA
Primary voltage 230V AC
Secondary voltage 1 9V
Secondary winding current 1 0.77A
Mounting PCB
Electrical insulation strength 4kV/60s
IP rating IP00
Conform to the norm PN-EN 61558
Thermal class Ta40B
Secondary winding terminals 7-9
Primary winding terminals 1-5
Insulation class II
Weight 250g
A dimension 45mm
A1 dimension 31mm
B dimension 38mm
B1 dimension 27mm
C dimension 31.8mm
C1 dimension 26mm
M dimension 25mm
P dimension 5mm

Dodatne informacije

Težina bruto: 0.2 kg

Šifra: 115924

Količina: 8

Kataloški brojevi: 420006-005,TSZZ 7/006M,TSZ7/006,420007-005,TSZZ 7/005M

Zamjena:
