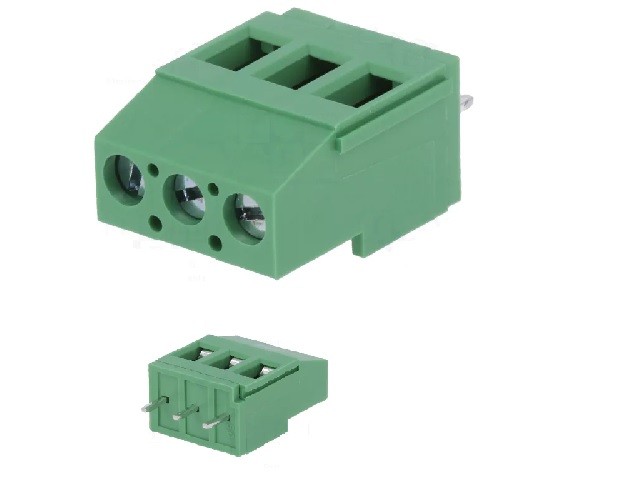

REDNA STEZALJKA 3P/3F, TERMINAL BLOK PCB ZELENI Rm=5.0mm-2.5mm2, KONEKTORI, REDNA STEZALJKA

Manufacturer: DEGSON ELECTRONICS
Type of connector: PCB terminal block
Spatial orientation: angled 90°
Contacts pitch: 5mm
Number of ways: 3
Mechanical mounting: on PCBs
Electrical mounting: cage clamp, screw terminal, THT
Connector: terminal
Contact plating: tinned
Current rating: 20A
Height: 18mm
Colour: green
Rated voltage:  300V
Body material: PA66
Connectors features: assembling possibility
Length: 15mm
Contact material: brass
Operating temperature: -40...105°C
Depth: 10.5mm
Flammability rating: UL94V-0
Type of pin configuration: 1x3
Conform to the norm: CE, UL, VDE
Wire size: 26AWG...12AWG
Wire cross section: 2.5mm2

Šifra: 123547

Količina: 34

Kataloški brojevi: DG129-5.0-03P-14

Zamjena:
