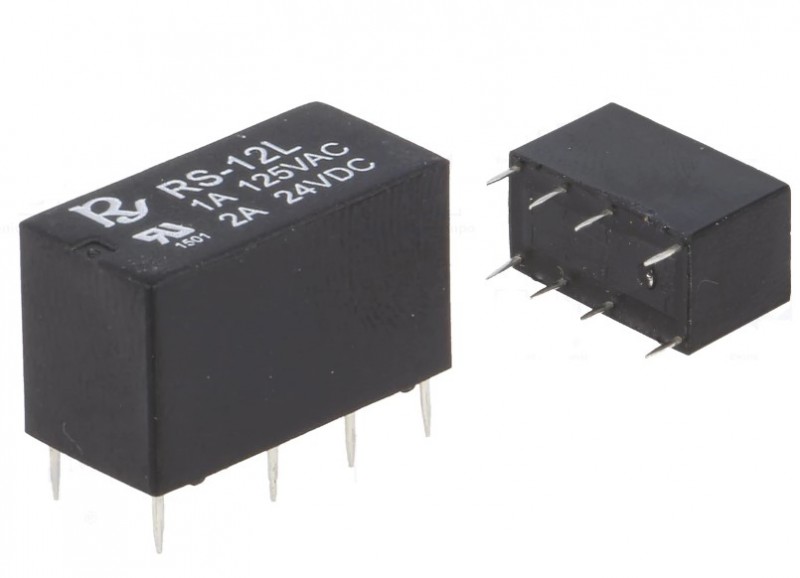

REL-RS-12-L-SHORY, RELAY 12VDC 1A/125VAC 1.25A/3VDC, , RELAY

Manufacturer: RAYEX ELECTRONICS
Relay type: electromagnetic
Contacts configuration:  DPDT
Rated coil voltage: 12V DC
AC contacts: rating: 1 A / 125 VAC
DC contacts: rating: 1.25 A / 30 VDC
Contact current max.: 2A
Switched voltage max: 125V AC, max 30V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 405Ω
Operate time: 6ms
Body dimensions: 20.2 x 9.8 x 11.5mm
Release time: 3ms
Coil power consumption: 200mW
Operating temperature: -30...70°C
Relay series: RS
Contact resistance: 100mΩ
Contact material: AgCdO
Terminal pitch: 5.08mm
Coil current: 22.2mA

Šifra: 117514

Količina: 3

Kataloški brojevi: RS-12-L

Zamjena:
