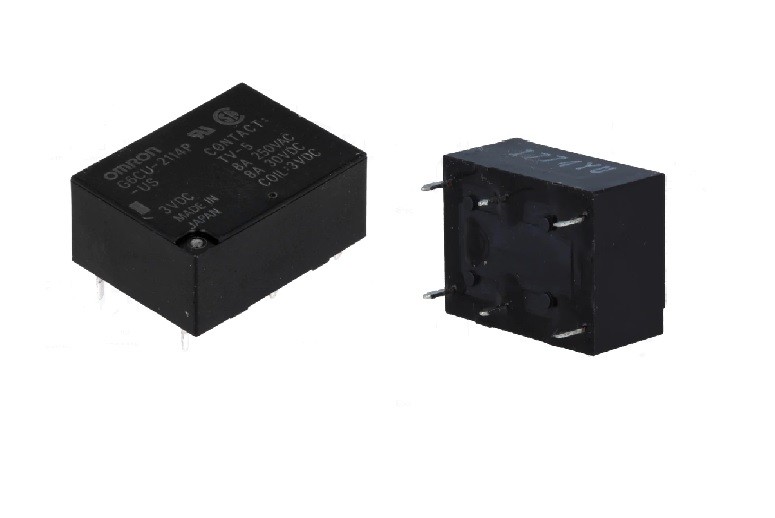

REL-G6CU-2114P-US3V-OMRON, RELAY SPST-NO+SPST-NC 3VDC 8A/250VAC, , RELAY

Manufacturer OMRON
Type of relay electromagnetic
Contacts configuration  SPST-NO + SPST-NC
Rated coil voltage 3V DC
AC contacts rating @R
(at resistance load) 8 A / 250 VAC
DC contacts rating @R
(at resistance load) 8 A / 30 VDC
Contact current max. 8A
Switched voltage max 125V DC, max 380V AC
Relay variant miniature
Mounting PCB
Operate time 10ms
Body dimensions 20 x 15 x 10mm
Release time 10ms
Coil power consumption 200mW
Relay series G6C
Contact resistance 30mΩ
Terminal pitch 7.62mm
Coil current 67mA
Dimensions pogledaj
Output configuration pogledaj

Dodatne informacije

Težina bruto: 5.83 g

Šifra: 119022

Količina: 3

Kataloški brojevi: G6CU-2114P-US3V

Zamjena:
