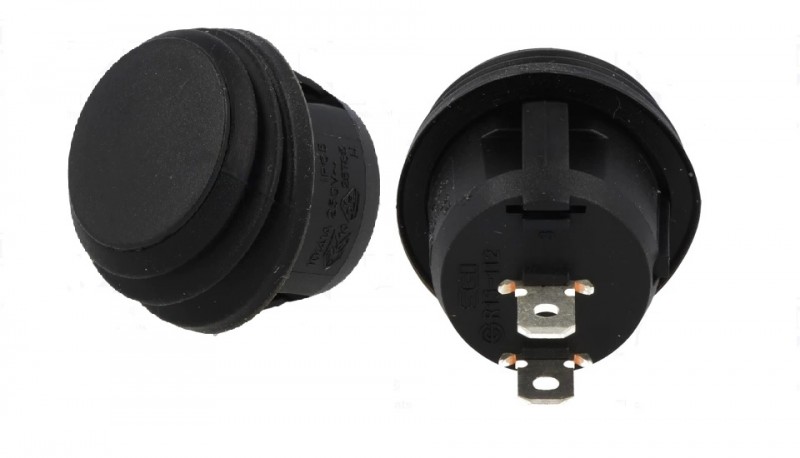

PV-030(IP65)-SCI, VODOOTPOR-OKRUGLI CRNI ON-OFF 250V 10A(F, , PREKIDAČI-TIPKALA

Manufacturer SCI
Type of switch ROCKER
Contacts configuration  SPST
Number of positions 2
Switching method
(item in brackets is instantaneous) OFF-ON
AC contacts rating @R
(at resistive load) 10A / 250V AC
Key button colour black
IP rating IP65
Illumination none
Max. contact resistance: 50mΩ
Body colour black
Body material polyamide
Flammability rating UL94V-2
Operating temperature -20...85°C
Leads 4,8x0,8mm connectors
Panel thickness max. 2.5mm
Mounting hole diameter Ø20.2mm
Button marking blank
Shape round
Manufacturer series R13-112-AC
Button shape round
Body dimensions Ø19.5x14.5mm
Test voltage 1.5kV
Stable positions number 2

Šifra: 122762

Količina: 8

Kataloški brojevi: R13-112A8-02-BB,R13112A802BB

Zamjena:
