PV-009/R, 12V 20A PREKIDAČ CRVENI+LED ON-OFF, PREKIDAČI-TIPKALA, PREKIDAČ VAGA

Manufacturer NINIGI
Type of switch ROCKER
Contacts configuration  DPST
Number of all positions 2
Stable positions number 2-position
Switching method
(item in brackets is instantaneous) OFF-ON
AC contacts rating @R
(at resistance load) 15 A / 250 VAC
Key button colour red
Illumination neon lamp
Max. contact resistance: 35mΩ
Body colour black
Operating temperature -30...80°C
Leads 6.3x0.8mm connectors
Electrical life 10000cycles
Mounting hole diameter 31 x 22.3mm
Button marking O-I
Backlight colour red
Shape rectangular
Height above panel 9.4mm
Button shape rectangular

Šifra: 115360

Količina: 43

Kataloški brojevi: 313432MX,,

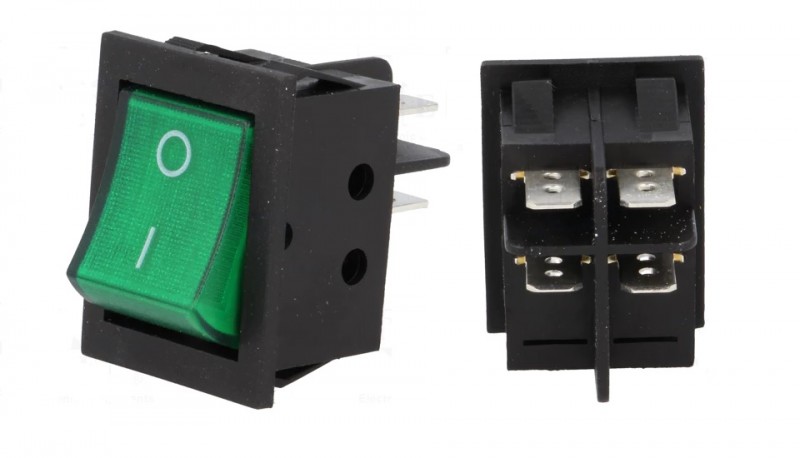

Zamjena: PV-026
