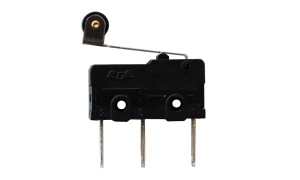

MIKROPREKIDAČ-ESS0513310-ECE(T, MIKROPREKIDAČ 250V 3A 0,49N+ROLLER, PREKIDAČI-TIPKALA, MIKROPREK.KONEKTORSK

Manufacturer HIGHLY
Type of switch microswitch SNAP ACTION
Switches features with lever (with roller)
Contacts configuration  SPDT
AC contacts rating @R
(at resistance load) 3A / 250V AC
Switching method
(item in brackets is instantaneous) ON-(ON)
Number of positions 2
Stable positions number 1-position
IP rating IP40
Leads for soldering
Body dimensions 19.8x6.4x10.2mm
Mechanical durability 1000000cycles
Operating temperature -25...70°C
Operating Force 1.5N
Lever length 17mm
Electrical life 100000cycles
Max. contact resistance: 30mΩ
Min. insulation resistance 100MΩ
Terminal pitch 7.3mm

Šifra: 109962

Količina: 17

Kataloški brojevi: WLK-4MINI/HE,ESS0513310

Zamjena:
