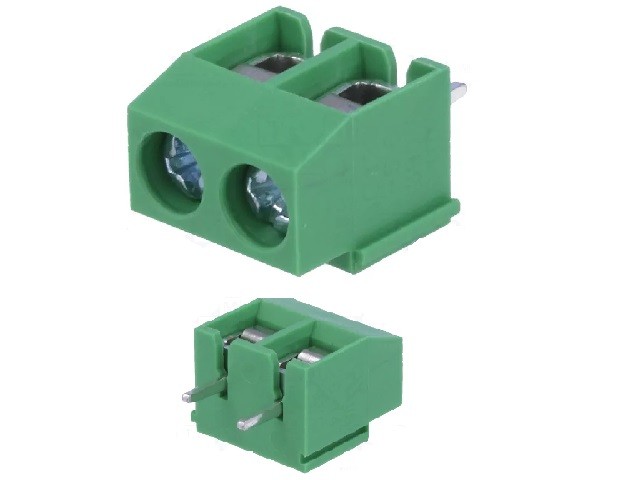

REDNA STEZALJKA 2P/2C, TERMINAL BLOK PCB-ZELENI Rm=5.0-2.5mm2, KONEKTORI, REDNA STEZALJKA

Manufacturer DEGSON ELECTRONICS
Type of connector PCB terminal block
Spatial orientation angled
Contacts pitch 5mm
Number of ways 2
Mechanical mounting on PCBs
Electrical mounting screw terminal, THT
Wire cross-section 0,5...2,5mm2
Wire size 26AWG...14AWG
Connector variant with wire protector
Connector terminal
Contact plating tinned
Current rating 18A
Height 10,2mm
Colour green
Rated voltage 0,25kV

Body material polyamide 66
Connectors features assembling possibility
Length 10mm
Contact material brass
Operating temperature -40...105°C
Depth 7,8mm
Connector pinout layout 1x2
Conform to the norm CE UL VDE

Šifra: 120669

Količina: 137

Kataloški brojevi: DG126-5.0-2P14

Zamjena:
