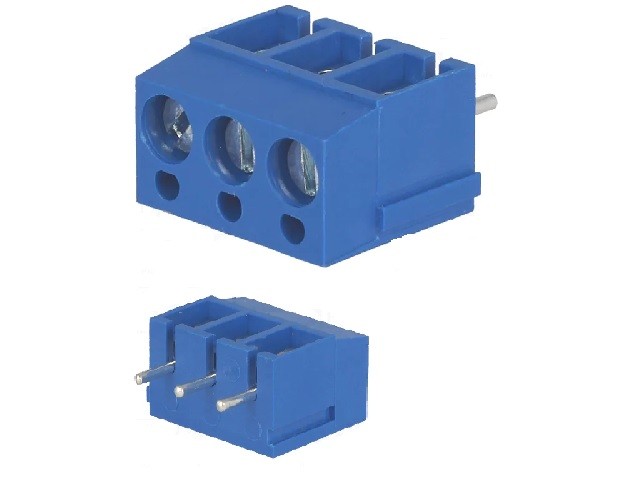

REDNA STEZALJKA 3P/3B, TERMINAL BLOK 3 PIN PCB PLAVI Rm=5.0mm-2, ELEKTROMATERIJAL, TERMINAL

Manufacturer DEGSON ELECTRONICS
Type of connector PCB terminal block
Spatial orientation angled 90°
Contacts pitch 5mm
Number of ways 3
Mechanical mounting on PCBs
Electrical mounting screw terminal, THT
Wire cross-section 2,5mm2
Wire size 22AWG...14AWG
Connector variant with wire protector
Connector terminal
Contact plating tinned
Current rating 24A
Height 12,6mm
Colour blue
Rated voltage 0,25kV

Body material PBT
Connectors features assembling possibility
Length 15mm
Contact material brass
Operating temperature -30...120°C
Depth 9mm
Connector pinout layout 1x3

Conform to the norm CE UL VDE

Šifra: 106816

Količina: 92

Kataloški brojevi: 2155,DG300-5.0-3P12,282836-3

Zamjena: EL-CONN052
