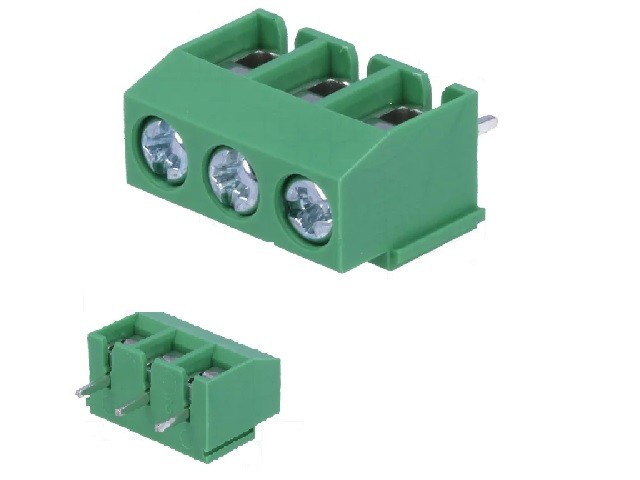

REDNA STEZALJKA 3P/3C, TERMINAL BLOK PCB-ZELENA Rm=5.0mm-0.5-2., ELEKTROMATERIJAL, REDNA STEZALJKA

Manufacturer DEGSON ELECTRONICS
Type of connector PCB terminal block
Spatial orientation  angled
Contacts pitch 5mm
Number of ways 3
Mechanical mounting on PCBs
Electrical mounting screw terminal, THT
Connector variant with wire protector
Connector terminal
Contact plating tinned
Current rating 18A
Height 10.2mm
Colour green
Rated voltage 250V
Body material PA66
Connectors features assembling possibility
Length 15mm
Contact material brass
Operating temperature -40...105°C
Depth 7.8mm
Flammability rating UL94V-0
Type of pin configuration 1x3
Conform to the norm CE, UL, VDE
Wire size 26AWG - 14AWG
Wire cross section 0.5...2.5mm2

Additional information

Gross weight: 2.225 g

Šifra: 112896

Količina: 49

Kataloški brojevi: DG126-5.0-3P14,EBAG-03-C,

Zamjena:
