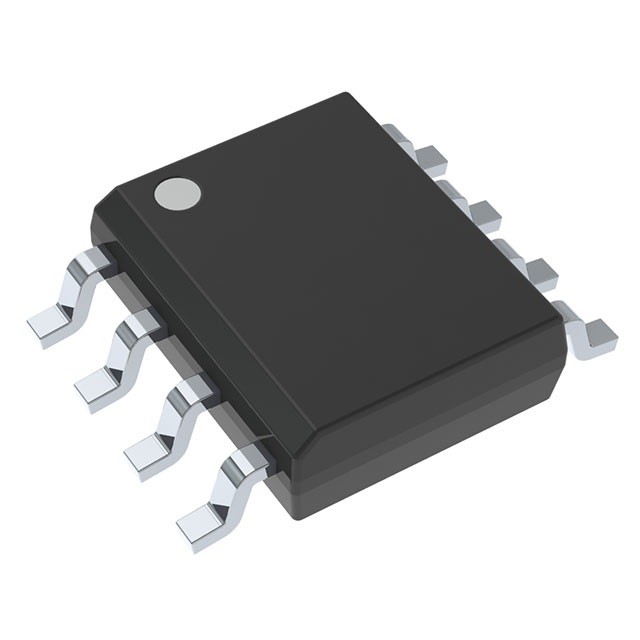

RC4559D, IC, , IC

Manufacturer: Texas Instruments
Product Category: Operational Amplifiers - Op Amps
RoHS: DetailsNumber of Channels:2 Channel
GBP - Gain Bandwidth Product:4 MHz
SR - Slew Rate:2 V/us
Vos - Input Offset Voltage:6 mV
Ib - Input Bias Current:250 nA
Supply Voltage - Max:30 V
Supply Voltage - Min:10 V
Operating Supply Current:3.3 mA
Output Current per Channel:10 mA
CMRR - Common Mode Rejection Ratio:100 dB
en - Input Voltage Noise Density:7 nV/sqrt Hz
Package/Case:SOIC-8
Mounting Style:SMD/SMT
Shutdown:No Shutdown
Minimum Operating Temperature:0 C
Maximum Operating Temperature:+ 70 C
Series:RC4559
Packaging:Tube
Amplifier Type:High Performance Amplifier
Brand:Texas Instruments
Dual Supply Voltage:+/- 9 V, +/- 12 V
Height:1.58 mm
Length:4.9 mm
Maximum Dual Supply Voltage:+/- 15 V
Minimum Dual Supply Voltage:+/- 5 V
Operating Supply Voltage:+/- 5 V to +/- 15 V
Pd - Power Dissipation:500 mW (1/2 W)
Product:Operational Amplifiers
Product Type:Op Amps - Operational Amplifiers
Subcategory:Amplifier ICs
Supply Type:Dual


Šifra: 20181

Količina: 8

Kataloški brojevi: 20971766

Zamjena:
