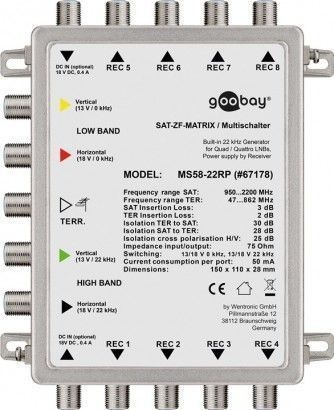

MULTISWITCH 5/8, (1 SATELIT)MULTI SKLOPKA 5 ULAZA 8 IZLAZ, ANTENSKA OPREMA, MULTISKLOPKE

It can even fit into the smallest corner in the attic, thanks to its compact design. It doesn’t even need a power supply cord, since the multi-switch takes the power that it and the LNB require from the connected receivers.

Suitable for DVB-S and DVB-S2 (4K/HDTV/3D)
Compatible with a Quad LNB and Quattro LNB
Additional terrestrial antenna input (DVB-T/DVB-T2 HD)
Built-in 22 kHz generator
Power supply via receiver
Compact cast aluminium housing
No 230 V connection (power supply) required!

Device connections
Max. subscriber: 8 szt.
Number of inputs: 5 pcs.
Switching commands: 13/0; 18/0; 13/22; 18/22
Power supply for LNB: 400
Number of outputs: 8 pieces
Input, type: F female
Output, type: F female

Transmission modesDVB-S, DVB-S2, DVB-T, DVB-T2
950 - 2.200
28 - 30
10
Return loss SAT outputs8 dB
47 - 862

Consumption Unit1 pc. in cardboard box
Color: silver
Markings: CE, WEEE
Length: 149.9 mm
Width: 124 mm
Height: 28.7 mm

Šifra: 122402

Količina: 0

Kataloški brojevi: 67128W

Zamjena:
