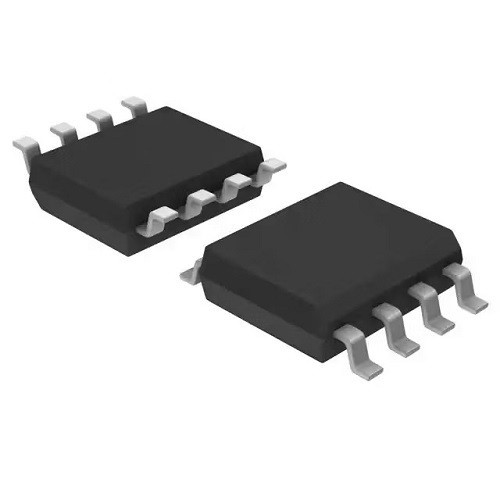

LMV358IDT-ST, IC-OpAmp 1.3Mhz 2.7V-6V CH:2 (SO8), , IC

Manufacturer: STMicroelectronics

Product Category: Operational Amplifiers - Op Amps

Mounting Style: SMD/SMT

Package/Case: SO-8

Supply Voltage - Max: 6 V

Output Current per Channel: 46 mA

Number of Channels: 2 Channel

GBP - Gain Bandwidth Product: 1 MHz

SR - Slew Rate: 0.35 V/us

CMRR - Common Mode Rejection Ratio: 55 dB

Input Bias Current: 50 nA

Vos - Input Offset Voltage: 3 mV

Supply Voltage - Min: 2.7 V

Operating Supply Current: 22 uA

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 125 C

Shutdown: No Shutdown

Series: LMV358

Qualification: AEC-Q100

Amplifier Type: Low Power Amplifier

Height: 1.65 mm

Length: 5 mm

Product: Operational Amplifiers

Supply Type: Single

Width: 4 mm

Brand: STMicroelectronics

en - Input Voltage Noise Density: 40 nV/sqrt Hz

Operating Supply Voltage: 2.7 V to 6 V

Product Type: Op Amps - Operational Amplifiers

PSRR - Power Supply Rejection Ratio: 70 dB

Subcategory: Amplifier ICs

Voltage Gain dB: 97 dB

Unit Weight: 506,600 mg


Šifra: 121695

Količina: 10

Kataloški brojevi:

Zamjena:
